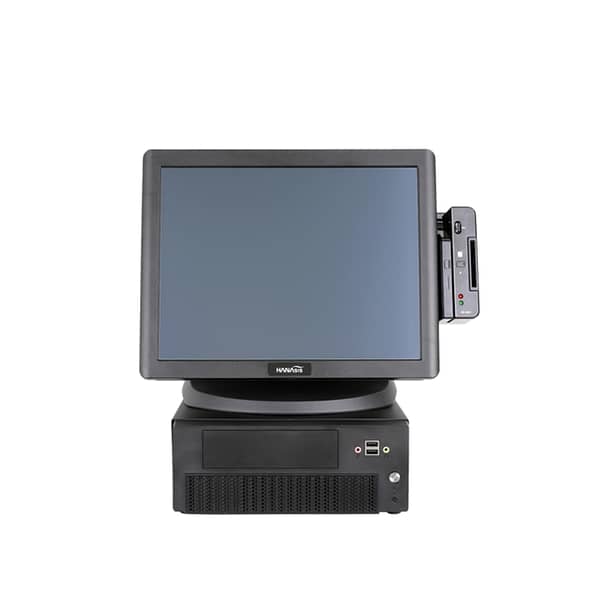

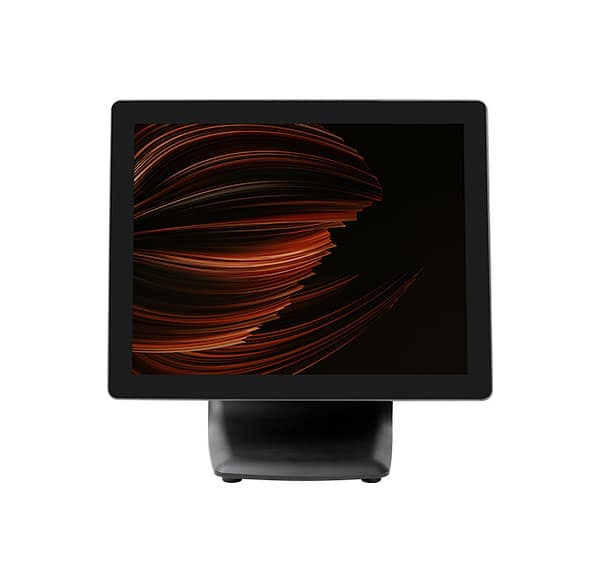

P500

Description

Features at a Glance

• Industrial-Grade LED Panel: Ensures durability and clear visibility in various lighting conditions.
• Aluminum Base Design: Provides enhanced heat dissipation and anti-static properties, contributing to the terminal’s longevity.
• Integrated Wi-Fi Support: Facilitates seamless wireless connectivity for efficient operations.
• Magnetic Stripe Reader (MSR): Supports 3-track ISO or JIS1 standards, with HID/VCOM selection for versatile card reading capabilities.
• Stylish Design with Concealed Wiring: Offers an aesthetically pleasing appearance suitable for various business environments.

1 . System Configuration

• Processor: Intel® Core™ i3-1115G4 Processor (6M Cache, Up to 4.10 GHz)
  Intel® Core™ i5-1135G7 Processor (8M Cache, Up to 4.20 GHz)
  System on Chip (SoC)
• Memory: DDR4L 4GB SoDIMM (Up to 16GB)
• Storage:2.5”, SATA-III SSD 128GB (Up to 512GB) (Optional RAID; Ask for details)
• Power Supply: 96[W] Adaptor, Input AC 100~240V/50~60HZ, DC 24V/4A (DIN 3-Pin)
• Operating System Support: Windows 10 IoT / Windows 10 Pro / Linux(CentOS 7.X ~)
  (Windows 11 Pro PC Version Only)

2 . Display

• Screen Size:15”, 1024 x 768, 24bit, Luminance : 350 cd/m², Backlight : LED

3 . Connectivity

• Touch Panel 15”, Projective Capacitive Touch (Bezelless)
• HDMI: 1EA (Intel® UHD Graphics)
• LAN :1EA (Realtek Gigabit LAN)
• Serial :5EA (DSUB-9P x 2EA / RJ-45 x 2EA / RJ-11 x 1EA (MSR))
• USB :USB 3.0 x 4EA(I/O), USB 2.0 x 2EA (Rear)
• Audio :1EA (Line Out)
• Speaker :1EA (1W)
• Cooler & FAN: Fanless
• Cash Drawer :1EA (RJ-11) (DK Port Default : 24V/GPIO)

4 . Physical Dimensions

• Dimensions: 430(W) x 410(L) x 310(H) (BOX)
• Weight:4.8kg

5 . Environmental Conditions

• Operating Temperature: 0°C to 40°C, with 20% to 90% relative humidity (equipped with HDD)
• Storage Temperature: -20°C to 70°C, with 10% to 90% relative humidity

6 . Optional Built-in Features:

• Customer Display: VFD Type, 20 Characters x 2 Lines (Serial RS-232)
• Customer Card Reader: Dual-Track(1&2) or Triple-Track(1&2&3) (USB)
